Wizard of Wor - Reverse Engineering

// Overview

This project documents the complete reverse engineering of Wizard of Wor for the Atari 800, from an ATR disk image to a byte-identical reassemblable disassembly.

23,168

Bytes of Code

$1000

Load Address

$1AF2

Entry Point

100%

Byte-Identical

COMPLETE The game has been fully disassembled and verified to produce byte-identical output when reassembled with ca65/ld65.

// Screenshots

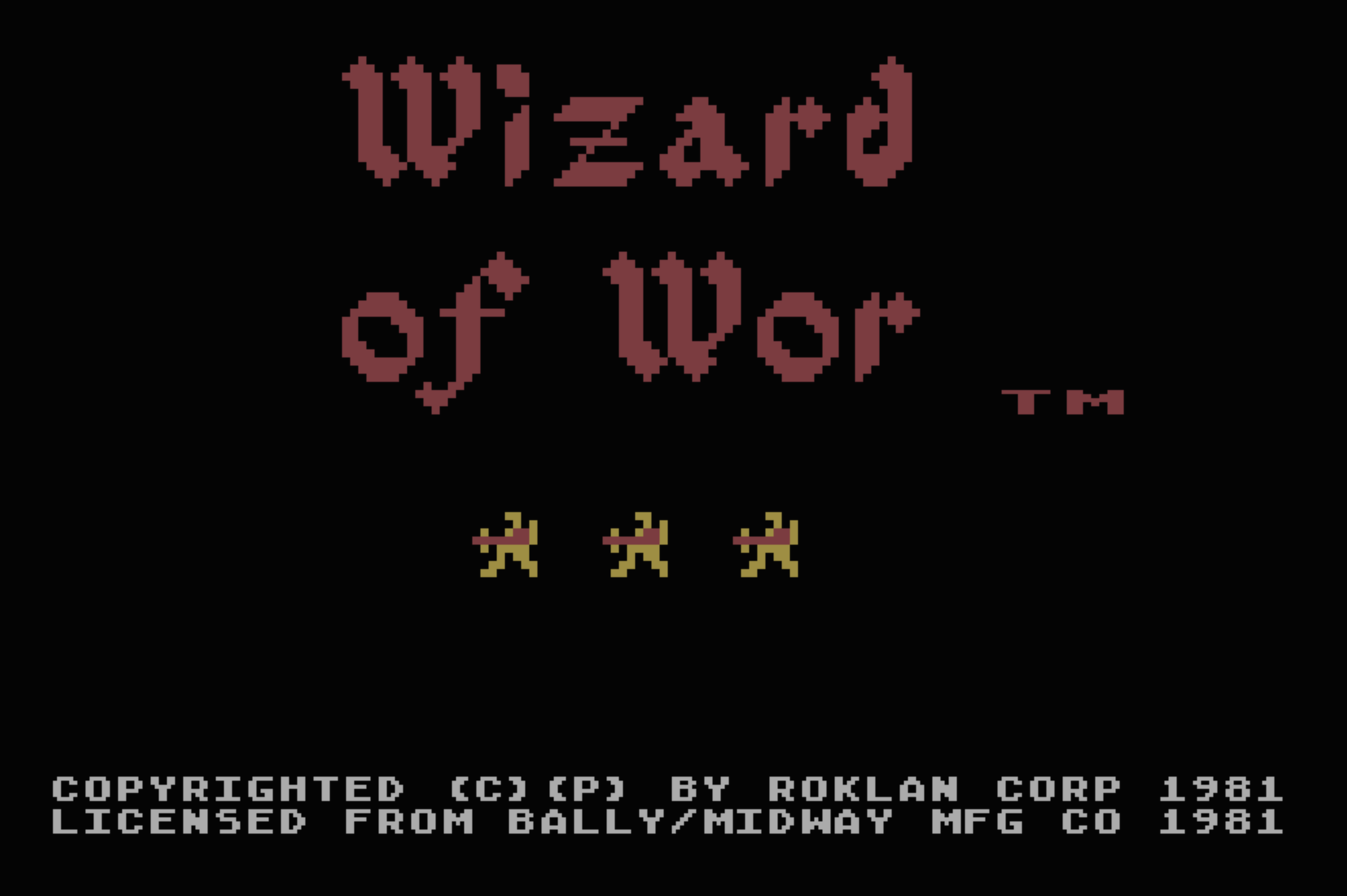

Title Screen

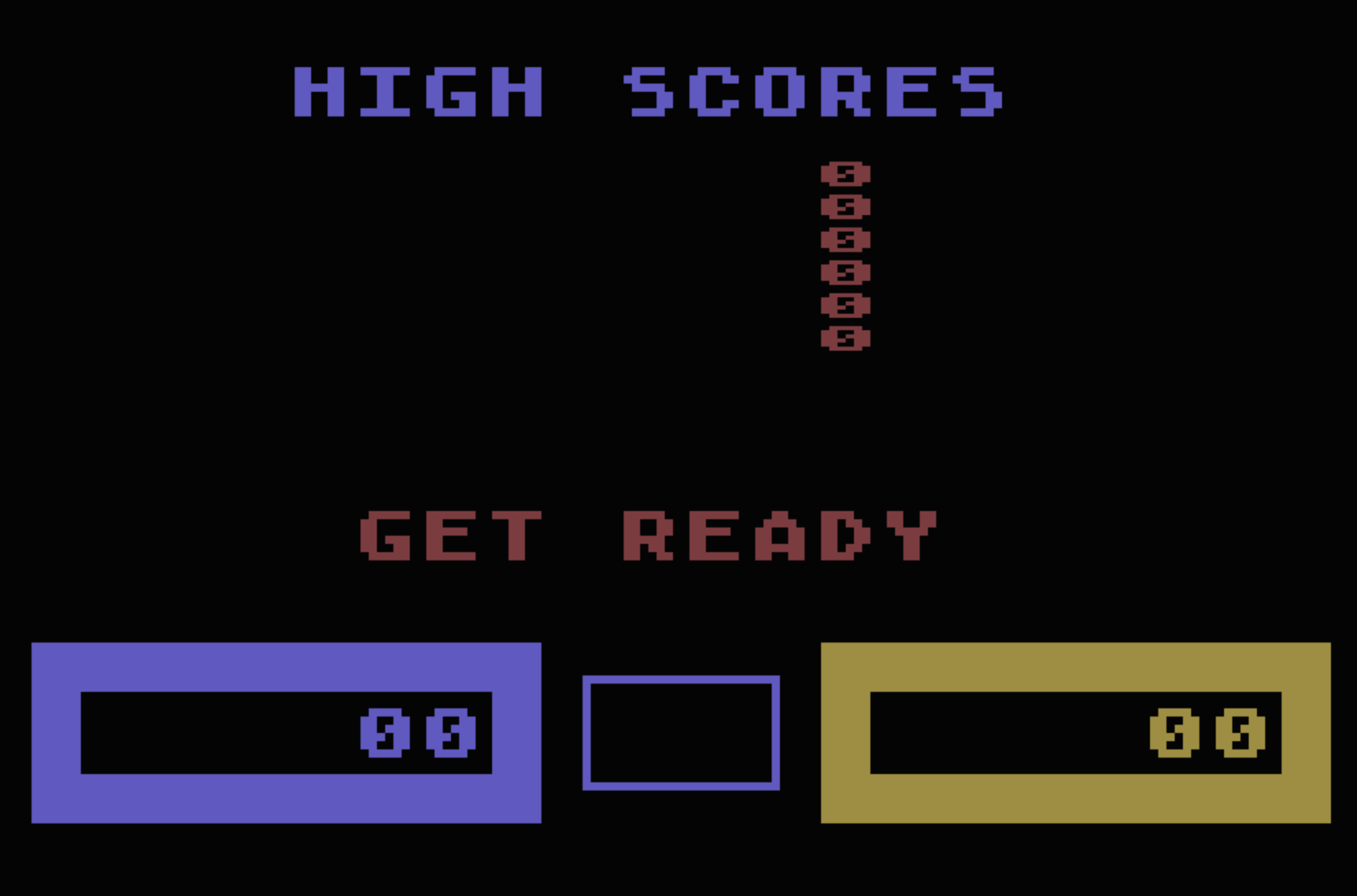

High Scores

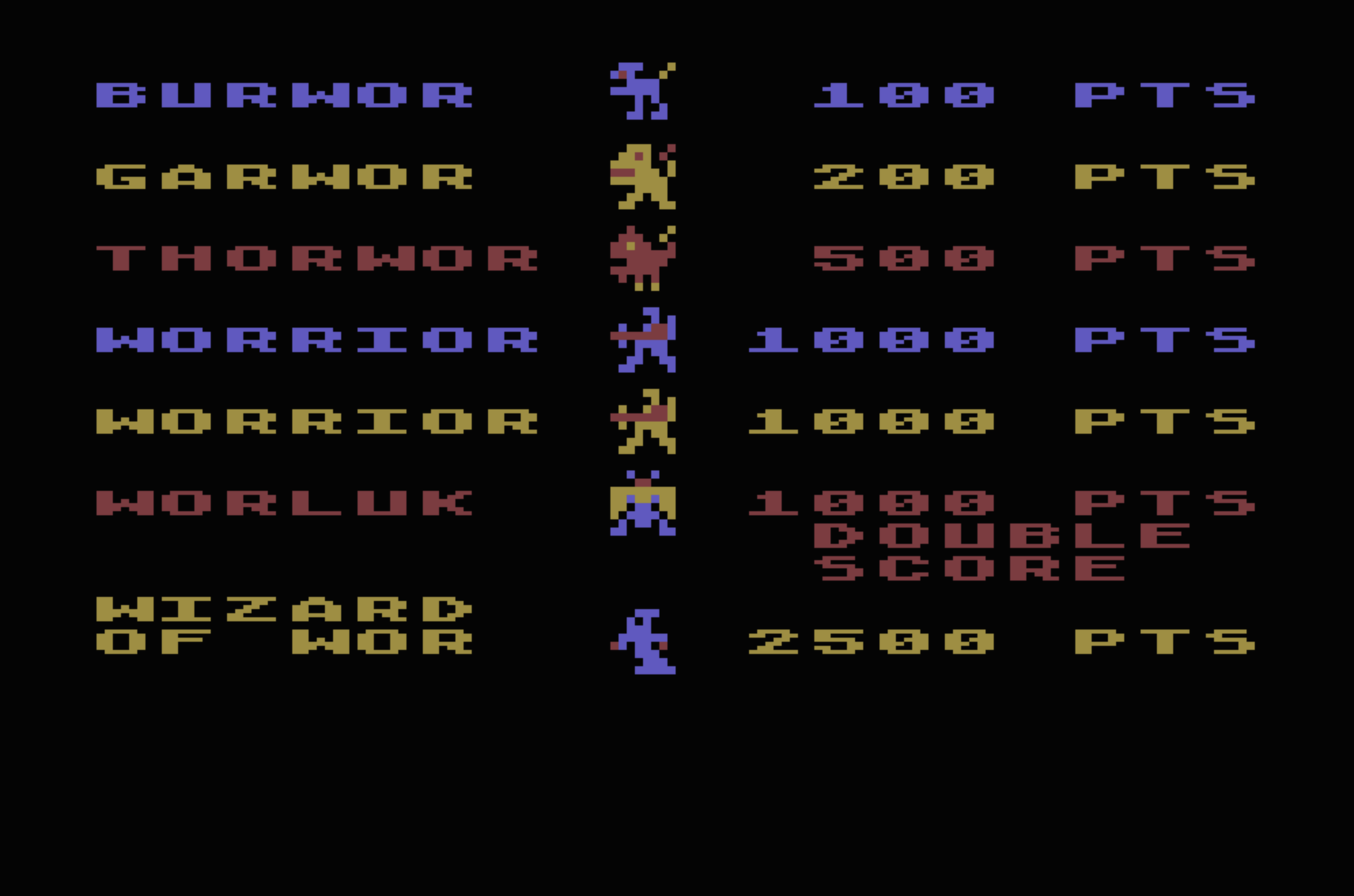

Monster Guide & Point Values

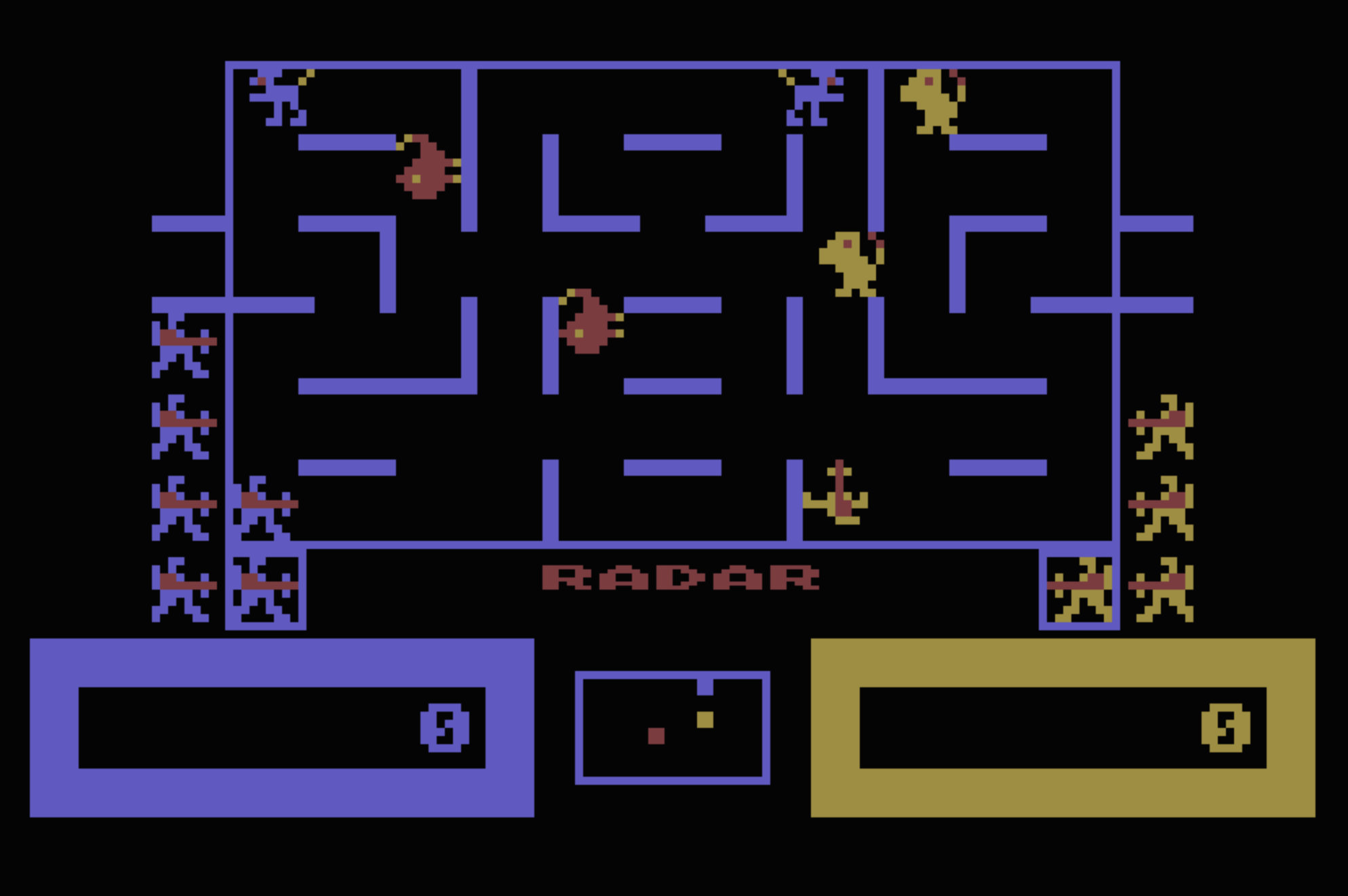

Gameplay - The Dungeon Maze

// ATR Disk Structure

The original ATR disk image (92,176 bytes) contains a custom boot loader and the game binary:

Header

16 bytes - ATR format header

Sectors 1-3

384 bytes - Boot loader ($0600)

Sector 4

128 bytes - UNUSED ($DA filler)

Sectors 5-185

23,168 bytes - Game code ($1000-$6A7F)

Sectors 186+

Character sets & additional data

Boot Loader Analysis

The boot loader at $0600 performs the following operations:

$0661 - Sets buffer pointer to $1000
$066B - Starts reading from sector 5
$06E0 - Loads character data to $7800
$06EF - Loads character data to $7900
Transfers control to $1AF2 after loading

// Memory Map

Main Memory Regions

Address	Size	Description
$0600-$077F	384 bytes	Boot loader code (overwritten after boot)
$1000-$167F	1,664 bytes	Graphics / character data
$1680-$6A7F	21,504 bytes	Main game code
$7800-$79FF	512 bytes	Custom character sets
$7F15-$7F26	18 bytes	Score display buffer

Key Zero Page Variables

Address	Name	Purpose
$B9	busy	Busy/wait flag
$E0	prev_state	Previous game state
$E1	game_active	Game active flag
$E3	game_phase	Current game phase
$81	lives	Lives remaining

Page 6 Variables ($0600-$06FF)

Address	Name	Purpose
$067C	game_state	Main state machine value
$069A	dungeon	Current dungeon level (1-N)
$069E-$06A3	p1_score	Player 1 score (6 BCD bytes)
$06A4-$06A9	p2_score	Player 2 score (6 BCD bytes)
$06AB	p2_flag	Two-player mode flag
$06DA	disp_mode	Display mode (1=title, 2=game, etc)

// Monster Types

Data extracted from the monster table at $3C20:

BURWOR

100 pts

Blue, slow, basic

GARWOR

200 pts

Yellow, medium speed

THORWOR

500 pts

Red, fast, shoots

WORLUK

1000 pts

Appears after clear

WIZARD

2500 pts

End boss, teleports

// Score System Analysis

The score system uses BCD (Binary Coded Decimal) arithmetic for proper decimal handling on the 6502 processor.

Score Storage

Address	Purpose
$069E-$06A3	Player 1 score (6 BCD bytes = 6 digits max 999,999)
$06A4-$06A9	Player 2 score (6 BCD bytes)
$7F15-$7F1A	Player 1 score display buffer
$7F1B-$7F20	Player 2 score display buffer

Score Addition Routine ($3489)

; add_score: Add points to player score using BCD mode
; Entry: Points to add stored at $069E-$06A3

L3489:  LDA #$00
        STA $06A4       ; Clear carry accumulator

        SED             ; *** SET DECIMAL MODE (BCD) ***

        LDA $06AB       ; Check two-player flag
        BEQ L3498       ; Branch if player 1
        LDX #$11        ; Player 2: display offset = 17
        BNE L349A       ; Always branch
L3498:  LDX #$05        ; Player 1: display offset = 5

L349A:  LDY #$05        ; Y = 5 (process 6 digits)

; Main addition loop (6 iterations for 6-digit score)
L349C:  CLC
        LDA $7F15,X     ; Load current display digit
        AND #$0F        ; Mask to get BCD value (0-9)
        ADC $06A4       ; Add carry from previous digit
        ADC $069E,Y     ; Add points digit
        PHA             ; Save result

        AND #$10        ; Check for BCD overflow
        BEQ L34AF       ; No overflow, skip
        LDA #$01        ; Overflow: set carry for next
L34AF:  STA $06A4       ; Store carry

        PLA             ; Restore result
        ORA #$10        ; Set display attribute (visible)
        STA $7F15,X     ; Store to score display
        DEX             ; Next display position
        DEY             ; Next points digit
        BPL L349C       ; Loop for all 6 digits

        CLD             ; *** CLEAR DECIMAL MODE ***

Key Observations:

Uses 6502's decimal mode (SED/CLD) for proper base-10 scoring
6-digit scores: maximum 999,999 points
Two score displays: P1 at $7F15, P2 at $7F15+12
Bit 4 ($10) = visible digit; Bit 7 ($80) = color attribute
Includes leading zero suppression for cleaner display

// Main Game Loop

The entry point at $1AF2 implements a state machine based on the value in $067C:

; main_loop: Entry point - game state machine
; Called after boot loader transfers control

L1AF2:  BEQ L1AF5       ; If Z flag set, continue
L1AF4:  RTS             ; Otherwise return

L1AF5:  LDA $B9         ; Load busy flag
        BNE L1AF4       ; If busy, return (wait)

        LDA $067C       ; Load current game state
        CMP $E0         ; Compare with previous state
        BEQ L1B29       ; Same state, skip transition

        ; State transition code...
        STA $E0         ; Update previous state
        ; ... dispatch to state handlers

Game States

Value	State	Description
$00	TITLE	Title screen / attract mode
$01	READY	"Get Ready" / level intro
$02	PLAY	Active gameplay
$03	DEATH	Player death sequence
$04	CLEAR	Level cleared
$05	GAMEOVER	Game over sequence

// Text Strings Found

Address	String
$4CE9	"DOUBLE"
$4E6B	"DOUBLESCORE"
$4E77	"GAME"
$4E7B	"OVER"
$4CF5	"DUNGEON"

Monster names found in data: BURWOR, GARWOR, THORWOR

// Free Space Analysis

Available space for modifications:

In Code Area

Address	Size	Contents
$13DD-$1407	43 bytes	$00 fill (in graphics area)
$67CB-$67FE	52 bytes	$00 fill
$6800-$6913	276 bytes	$00 fill

Total usable free space: ~328 bytes at $67CB-$6913

On Disk

Sector 4 is unused (128 bytes, $DA/$86 filler). The boot loader skips it.

Sector 720 High scores are saved here! The game has disk I/O routines at $1F29-$1F71 that read/write sector 720 via DSKINV ($E453).

// Tools & Methodology

Successful Tools

Tool	Purpose
Python 3	Custom extraction and disassembly scripts
ca65 (cc65 suite)	6502 assembler
ld65 (cc65 suite)	6502 linker
atari800	Emulator for testing
hexdump / dd	Binary analysis

Tools That Failed

Tool	Issue
atrcopy	`numpy.alen` removed in newer numpy
mkatr	Only handles DOS filesystems, not boot disks
atari_8bit_utils disasm	macOS compatibility issues, `be16toh` undefined

Lessons Learned

Custom tools win: Standard Atari utilities had various compatibility issues
Boot disks need manual analysis: No filesystem to parse, must reverse engineer the boot loader
Byte-identical strategy: Output as .byte directives with disassembly in comments to guarantee identical reassembly
Always verify: md5 checksum comparison is essential

// Downloads

wowor_disasm.s

253,102 bytes

Complete byte-identical disassembly. Assembles with ca65/ld65.

wowor.xex

23,180 bytes

Standalone XEX executable for emulators with real OS ROMs.

wowor_rebuilt.atr

92,176 bytes

Complete ATR disk with boot loader. Works with Altirra OS.

wowor_full.bin

23,168 bytes

Raw binary extracted from original ATR disk (sectors 5-185). Loads at $1000, entry point $1AF2.

wowor.cfg

214 bytes

Linker configuration for ld65.

wowor_annotated.s

~250 KB

Annotated disassembly with labels and comments.

Running the Game

# With Altirra OS (no real ROMs needed)
atari800 -ai -xl -xl-rev altirra -nobasic wowor_rebuilt.atr

# With real Atari OS ROMs
atari800 -xl wowor.xex

// Verification

The disassembly has been verified byte-identical to the original:

$ md5 wowor_full.bin wowor_rebuild_trimmed.bin

MD5 (wowor_full.bin) = f17911c9a28021c946a129696c073176
MD5 (wowor_rebuild_trimmed.bin) = f17911c9a28021c946a129696c073176

MATCH - Byte-identical!

VERIFIED Both files produce identical MD5 checksums, confirming a perfect disassembly.

// Project Status

✓ Binary extracted from ATR disk
✓ Byte-identical disassembly created
✓ Reassembles correctly with ca65/ld65
✓ New ATR disk created with rebuilt binary
✓ Verified working in emulator
✓ Memory map documented
✓ Score system analyzed

Potential Future Work

Fully decode the high score format in sector 720
Create fully annotated disassembly with meaningful labels
Document sprite and maze generation routines
Analyze the disk I/O routines at $1F29-$1F71
